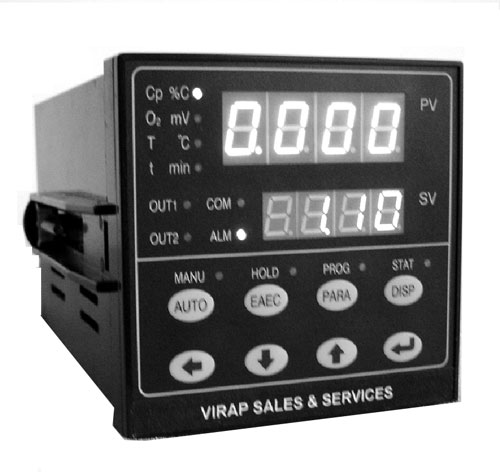

JC series programmable multi-loop controller



JC series controller is a kind of multi-loop controller with high accuracy, high efficiency, multi-function and multi-applications. It comprises temperature, carbon potential, and oxygen content. They are applied in the independent control or network control of the process single loop, double loops, and three loops.

  • 15 bits A/D conversing, 0.1 degree accuracy.

  • Double 4-bit high brightness LED display, 8-key operation.

  • 3way analog input, the special port for oxygen sensor.

  • 4-way switch output, 2-way analog output (or 2-way auxiliary switch output).

  • With RS485 or RS232C communication port, network control can be used.

  • Value setting/programming, manual/automatic, run/stop, connect/hold exchange without interrupt.

  • Configuration for output, flexible, with ON-OFF, position proportion, time proportion, pulse and many ways, suitable for different environment requirement.

  • Free input, thermocouple, current, voltage, and other signals can be input.

Many meters derive from the JC series intellectual programmable multi-loop controller, mainly temperature series; carbon potential, temperature control, meter series  and oxygen content .



  • JCT-1 single loop atmosphere carbon potential controller. It is applied in the atmosphere carbon potential control for single zone; it has the function of electrical drive valve, potential valve, solenoid valve. It can put enriching gas, carrier gas, diluting gas under control. It has the functions of oxygen sensor auto-maintenance, alarm of many kinds, carbon monoxide compensation calculation of carbon potential, and etc.
  • JCT-2 network loop controller. It formed a regional network with 1-4 temperature controllers, applied in controlling the equipment with sing or multi temperature zones. For example: pit furnace, batch furnace.
  • JCT-3 double-loop controller. Performing the control of temperature and atmosphere. Besides the function of single-loop atmosphere carbon potential controller, it added a loop of temperature closed-ring control, applied in pit furnace, batch furnace, and so on.
  • JCT-4 three loop controllers, accomplishing close-loop control and process management of 2-zone temperature and 1-zone atmosphere, specially designed for standard pit gas carburization furnace, and so forth. It is simple and economical, especially suitable for medium and small sized enterprises.

The catalogue figure of the JC series intellectual programmable multi-loop controller



JC_ - _ , _ _ _ _ _ _





METER

TYPE

DEFINITION

W















Temperature controller



T















Carbon potential controller



D



















Y















Oxygen Analyzer



CONTROL LOOP NUMBER

DEFINITION

1













Single loop controller



2













Network loop controller



3













Dual-loop controller



4













Three-loop controller



THE

DEFINITION OF THREE ANALOG INPUTS

1







Thermocouple input (K,S type)

1 st,2 nd loop

2







Carbon monoxide input0-35%co,0-5v

2 nd loop

3







Oxygen potential0-1500mv

3 rd loop

4









3 rd loop

5







Other inputs

1 st,2 nd loop



THE DEFINITION OF TWO

ANALOG OUTPUTS

1



0-50mv corresponding to 0-full scale



2



0-5v corresponding to 0-full scale



3



1-5v corresponding to 0-full scale



4



0-100mA corresponding to 0-full scale



5



4-20mA corresponding to 0-full scale



COMMUNICATION AGREEMENT DEFINITION

1

RS232C



2

RS485(RS422A)





NOTE: 0 means that there is no definition; analog output 0 indicates that output is extension switch output.
